Description

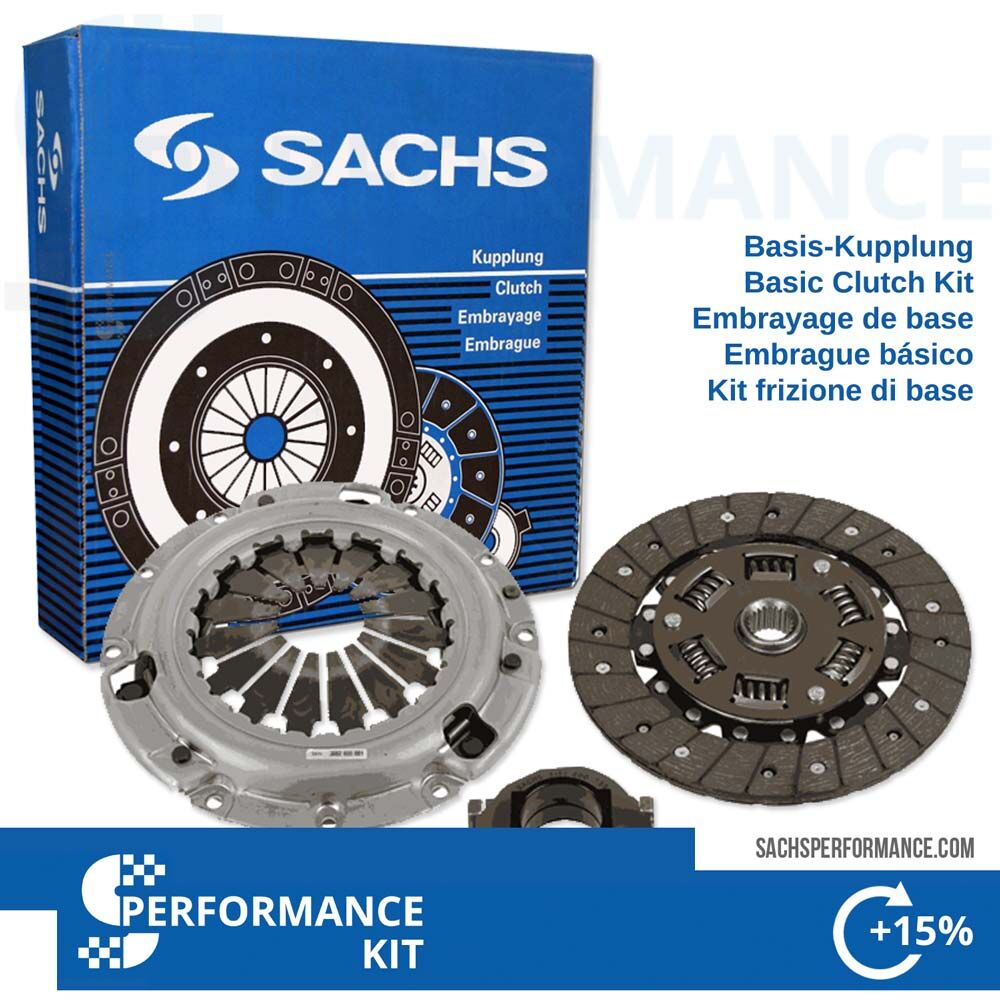

Reinforced Clutch Kit, custom-modified.
Transmittable torque about 15% higher than the OE clutch kit.
Includes SACHS clutch cover, reinforced clutch disc with performance clutch friction material and SACHS release mechanism.
Manufacturer compare numbers
MAZDA
024016150F
0240-16-150F
029016150F
0290-16-150F
043716460
0437-16-460
043716460A
0437-16-460A
397516460
3975-16-460
397516460A
3975-16-460A
411116460
4111-16-460
411116460A
4111-16-460A
807216460
8072-16-460
811616460
8116-16-460
811822460
8118-22-460
854016510
8540-16-510
854016510B
8540-16-510B
859916460
8599-16-460
BP0916410
BP09-16-410
D27Z7550A
D27Z-75-50A
D97Z7550A
D97Z-75-50A
FE8416510
FE84-16-510
G56016510B
G560-16-510B
H60616510A
H606-16-510A
HE0416460A
HE04-16-460A
K80116410C
K801-16-410C
K80316460
K803-16-460
N30916510
N309-16-510
Manufacturer
More reserves for higher demands.
- Approx. 15% higher transmittable torque compared to OE
- Higher thermal resistance
- Higher burst number of revolutions
- Longer life span
- Start performance similar to OE
- Complete clutch kit including release bearing
- 1:1 replacement of the old clutch
Technical Details.
Based on a new replacement clutch, your clutch kit will be custom modified by hand. - Made in Germany. The clutch disc will get a new high performance organic friction material with a reinforced layered clutch facing construction (Dry coating technology, non-asbestos and lead-free, elastomer / resin binder system, fiber glass reinforced, includes copper, filling materials and coefficient of friction modifiers).
Together with a special manufacturing process, this results in the desired characteristics of the clutch facing material.
Higher Power Transmission
The fundamental advantage of this modified clutch kit compared to the ordinary replacement clutch results in a higher life span, higher transmittable torque and in a better thermal resistance. Perfect for tuned engines such as chiptuning as also for towing trailers, Offroad and so on. Very good starting comfort and burst resistance ensure a high suitability for daily use.
Installation.
Because this kit is based on the original clutch, you can easily replace it 1:1 against your old clutch and it will fit to your existing flywheel without any modifications. Also, there´s no need to send us your old clutch parts back.
The advantages at one view
Wear:
Coefficient of friction:
Comfort / Judder:
Burst speed:
Fading:
Note.
This clutch kit resp. the part no. is not provided by ZF Sachs itself and can only be ordered here. If you any questions, don´t hesitate to send us an email or call our customer service at +49(0)40 3999 2118.
Typically applications include:
- Chip-Tuning, Turbocharger and supercharger modifications
- Vehicles with maximum gross vehicle weight and according to high load
(towing service, campers, ambulance cars, etc.) - Towing trailers, commercial vehicle
