Description

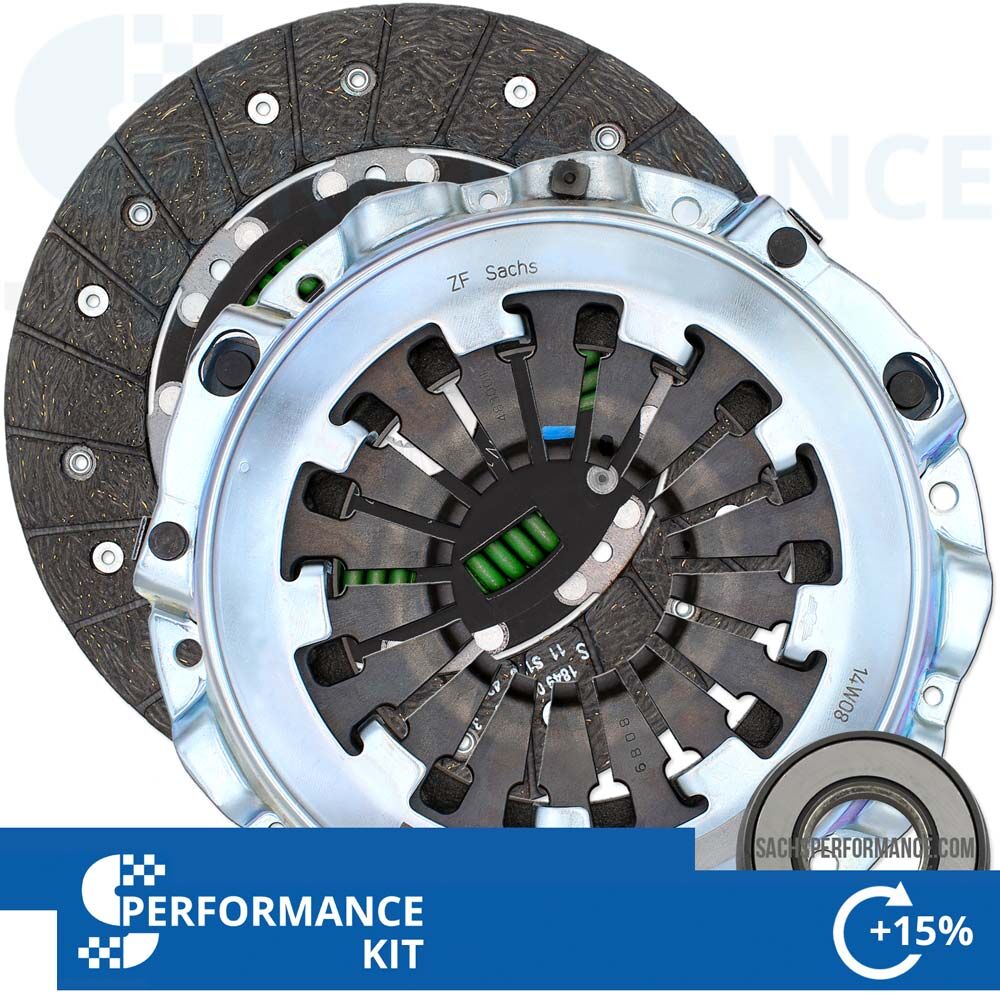

Reinforced Clutch Kit, custom-modified.
Transmittable torque about 15% higher than the OE clutch kit.

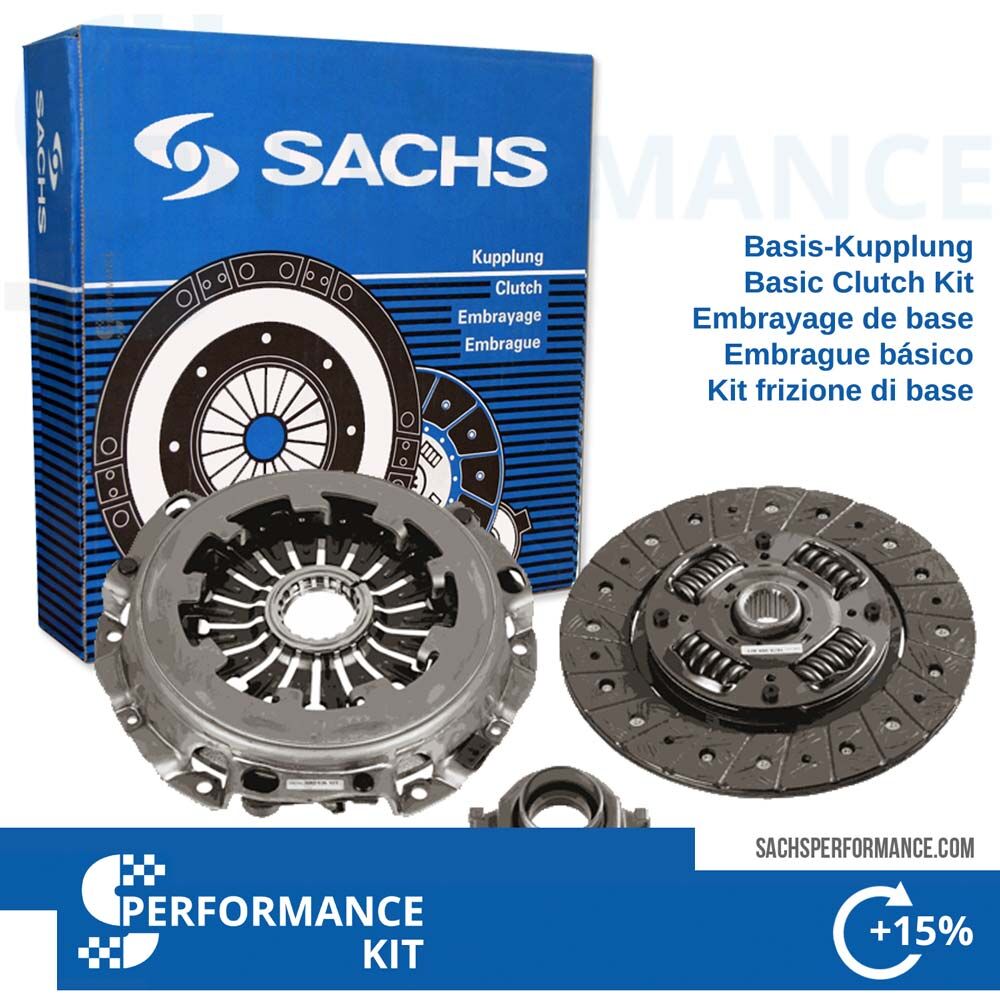

Includes SACHS clutch cover, reinforced clutch disc with performance clutch friction material and SACHS release mechanism.
Manufacturer compare numbersOE-Referenzen
MAZDA
854016510
8540-16-510
854016510B
8540-16-510B
BP0116460A
BP01-16-460A
F0C67550BB
F0C6-75-50BB
F32Z7550A
F32Z-75-50A
F86716460A
F867-16-460A
FE8416510
FE84-16-510
FS0116460A
FS01-16-460A
FS0216460A
FS02-16-460A
FS0516460A
FS05-16-460A
FS0616460
FS06-16-460
FS0616460A
FS06-16-460A
G56016510B
G560-16-510B
H60616510A
H606-16-510A
H80516460
H805-16-460
KL0116410
KL01-16-410
KL0116410A
KL01-16-410A
KL0116410B
KL01-16-410B
KL0116410C
KL01-16-410C
LF0316460A
LF03-16-460A
N30916510
N309-16-510
R20116460A
R201-16-460A
R20116460B
R201-16-460B
R20116460C
R201-16-460C
R20116460D
R201-16-460D
R20716460
R207-16-460
R20716460B
R207-16-460B
R20716460E
R207-16-460E
Manufacturer
More reserves for higher demands.
- Approx. 15% higher transmittable torque compared to OE
- Higher thermal resistance
- Higher burst number of revolutions
- Longer life span
- Start performance similar to OE
- Complete clutch kit including release bearing
- 1:1 replacement of the old clutch
Technical Details.
Based on a new replacement clutch, your clutch kit will be custom modified by hand. - Made in Germany. The clutch disc will get a new high performance organic friction material with a reinforced layered clutch facing construction (Dry coating technology, non-asbestos and lead-free, elastomer / resin binder system, fiber glass reinforced, includes copper, filling materials and coefficient of friction modifiers).
Together with a special manufacturing process, this results in the desired characteristics of the clutch facing material.
Higher Power Transmission
The fundamental advantage of this modified clutch kit compared to the ordinary replacement clutch results in a higher life span, higher transmittable torque and in a better thermal resistance. Perfect for tuned engines such as chiptuning as also for towing trailers, Offroad and so on. Very good starting comfort and burst resistance ensure a high suitability for daily use.
Installation.
Because this kit is based on the original clutch, you can easily replace it 1:1 against your old clutch and it will fit to your existing flywheel without any modifications. Also, there´s no need to send us your old clutch parts back.
The advantages at one view
Wear:
Coefficient of friction:
Comfort / Judder:
Burst speed:
Fading:
Note.
This clutch kit resp. the part no. is not provided by ZF Sachs itself and can only be ordered here. If you any questions, don´t hesitate to send us an email or call our customer service at +49(0)40 3999 2118.
Typically applications include:
- Chip-Tuning, Turbocharger and supercharger modifications
- Vehicles with maximum gross vehicle weight and according to high load
(towing service, campers, ambulance cars, etc.) - Towing trailers, commercial vehicle
