Racing Clutch Disc SACHS RCS 140 - Sinter 3.4

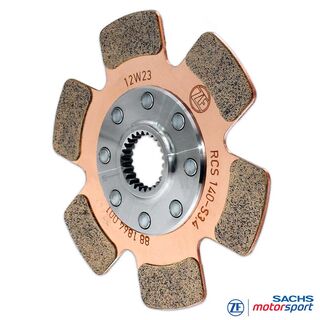

SACHS RCS 140 Clutch Disc
Sinter, due to its very light driven plates, is often used in applications such as circuit/track racing, formula series vehicles, and touring vehicles.
Sinter 3.4
Application examples- Circuit racing
- Formula- and Touring cars
- Rally
Advantages
- light
- small clutch height
- low mass and inertia
Information needed for ordering
In addition to the hub length of the clutch disc, it is necessary to specify the required spline of the gear input shaft. The various splines are listed in a table under 'Hub spline'. The corresponding spline letter replaces the letter “x“ or "?" in the order number of the disc.
SACHS RCS140 3.4 Clutch Standard Configuration| Engine torque Nm | Number of discs | Releaser diameter mm | Type of flywheel | Cover 00 3072 | Pressure Plate 00 3002 | Disc 88 1864 | Intermed. Plate 00 3019 | Disc 88 1864 | Intermed. Plate 00 3019 | Disc 88 1864 | Intermed. Plate 00 3019 | Disc 88 1864 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 480 | 2 | 49 | Step | 000 041 | 002 121 | 001 840-x | 000 224 | 001 840-x | ||||
| 1430 | 3 | 49 | Step | 000 038 | 002 120 | 001 840-x | 000 224 | 001 871-x | 000 224 | 001 840-x | ||
| 1430 | 3 | 49 | Flat | 000 113 | 001 120 | 001 840-x | 000 224 | 001 871-x | 000 224 | 001 840-x | ||
| 1430 | 3 | 38 | Step | 000 096 | 001 120 | 001 840-x | 000 224 | 001 871-x | 000 224 | 001 840-x | ||
| 1430 | 3 | 38 | Flat | 000 103 | 001 120 | 001 840-x | 000 224 | 001 871-x | 000 224 | 001 840-x | ||
| 1931 | 4 | 49 | Step | 000 170 | 001 120 | 001 751-x | 000 224 | 001 751-x | 000 224 | 001 751-x | 000 224 | 001 751-x |
| 1931 | 4 | 38 | Step | 000 171 | 001 120 | 001 751-x | 000 224 | 001 751-x | 000 224 | 001 751-x | 000 224 | 001 751-x |
| 1931 | 4 | 38 | Flat | 000 171 | 001 470 | 001 751-x | 000 224 | 001 751-x | 000 224 | 001 751-x | 000 224 | 001 751-x |
