Racing Clutch Disc SACHS RCS 184 - Sinter 2.6
Description
Manufacturer
Manufacturer:
ZF Race Engineering GmbH, Ernst-Sachs-Straße 62, 97424 Schweinfurt, Deutschland, www.zf.com

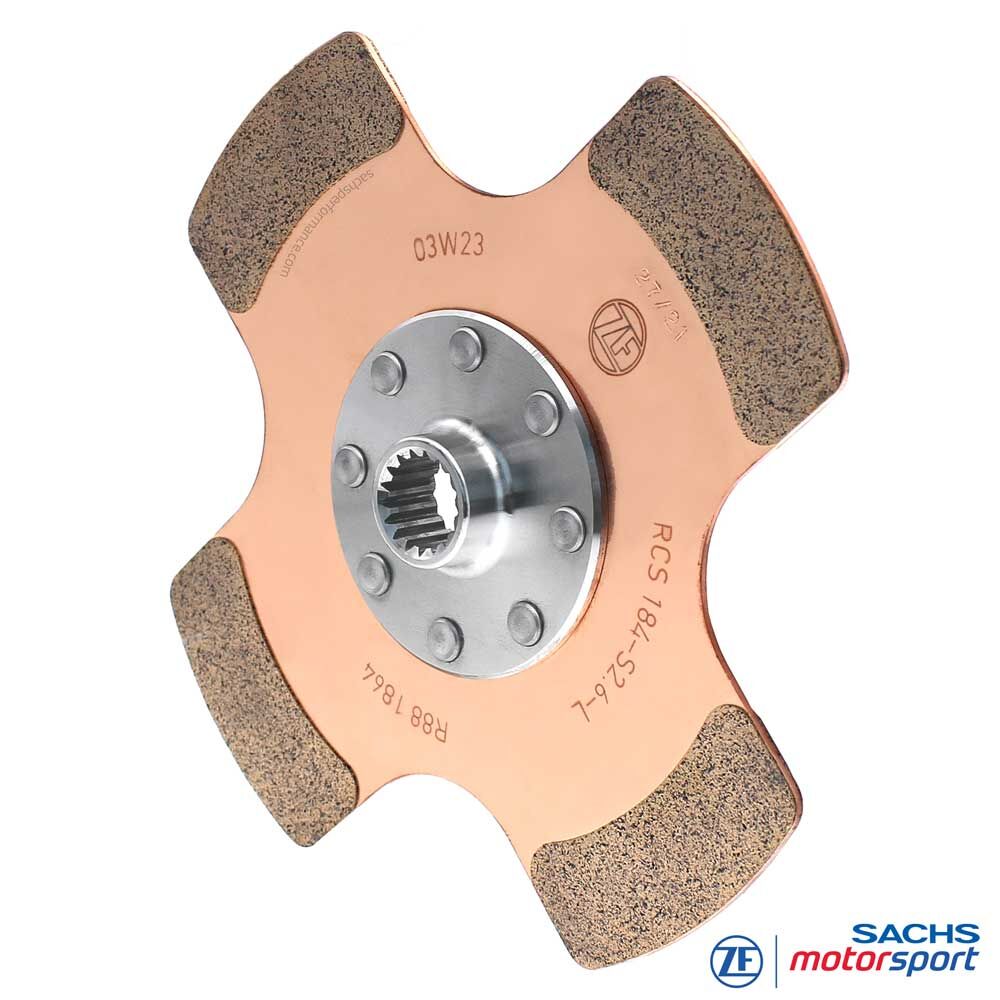

SACHS RCS 184 Clutch Disc
Sinter, due to its very light driven plates, is often used in applications such as circuit/track racing, formula series vehicles, and touring vehicles.
Sinter 2.6
Application examples- Circuit racing
- Formula- and Touring cars
- Rally
Advantages
- light
- small clutch height
- low mass and inertia
Information needed for ordering
In addition to the hub length of the clutch disc, it is necessary to specify the required spline of the gear input shaft. The various splines are listed in a table under 'Hub spline'. The corresponding spline letter replaces the letter “x“ or "?" in the order number of the disc.
SACHS RCS184 2.6 Clutch Standard Configuration| Engine torque Nm | Number of discs | Releaser diameter mm | Type of flywheel | Cover 00 3072 | Pressure Plate 00 3002 | Disc 88 1864 | Intermed. Plate 00 3019 | Disc 88 1864 | Intermed. Plate 00 3019 | Disc 88 1864 | Intermed. Plate 00 3019 | Disc 88 1864 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 654 | 1 | 49 | Step | 999 542 | 001 897 | 999 085-x | ||||||
| 385 | 1 | 49 | Step | 999 543 | 001 897 | 999 085-x | ||||||
| 769 | 2 | 49 | Step | 000 130 | 001 897 | 999 085-x | 000 0336 | 999 085-x | ||||
| 1308 | 2 | 49 | Step | 000 125 | 001 897 | 999 085-x | 000 0336 | 999 085-x | ||||
| 1308 | 2 | 44 | Step | 000 139 | 001 897 | 999 085-x | 000 0336 | 999 085-x | ||||
| 1154 | 3 | 49 | Step | 000 134 | 001 898 | 999 085-x | 000 0336 | 999 086-x | 000 0336 | 999 085-x | ||
| 1931 | 3 | 49 | Step | 000 126 | 001 898 | 999 085-x | 000 0336 | 999 086-x | 000 0336 | 999 085-x | ||
| 1931 | 3 | 44 | Step | 999 563 | 001 898 | 999 085-x | 000 0336 | 999 086-x | 000 0336 | 999 085-x | ||
| 2616 | 4 | 49 | Step | 000 127 | 001 897 | 999 127-x | 000 0336 | 999 127-x | 000 0336 | 999 127-x | 000 0336 | 999 127-x |
