Disque d'embrayage SACHS RCS 140 - métal fritté 5.2
Description
Different versions available - see details
Fabricant
Fabricant:
ZF Race Engineering GmbH, Ernst-Sachs-Straße 62, 97424 Schweinfurt, Deutschland, www.zf.com

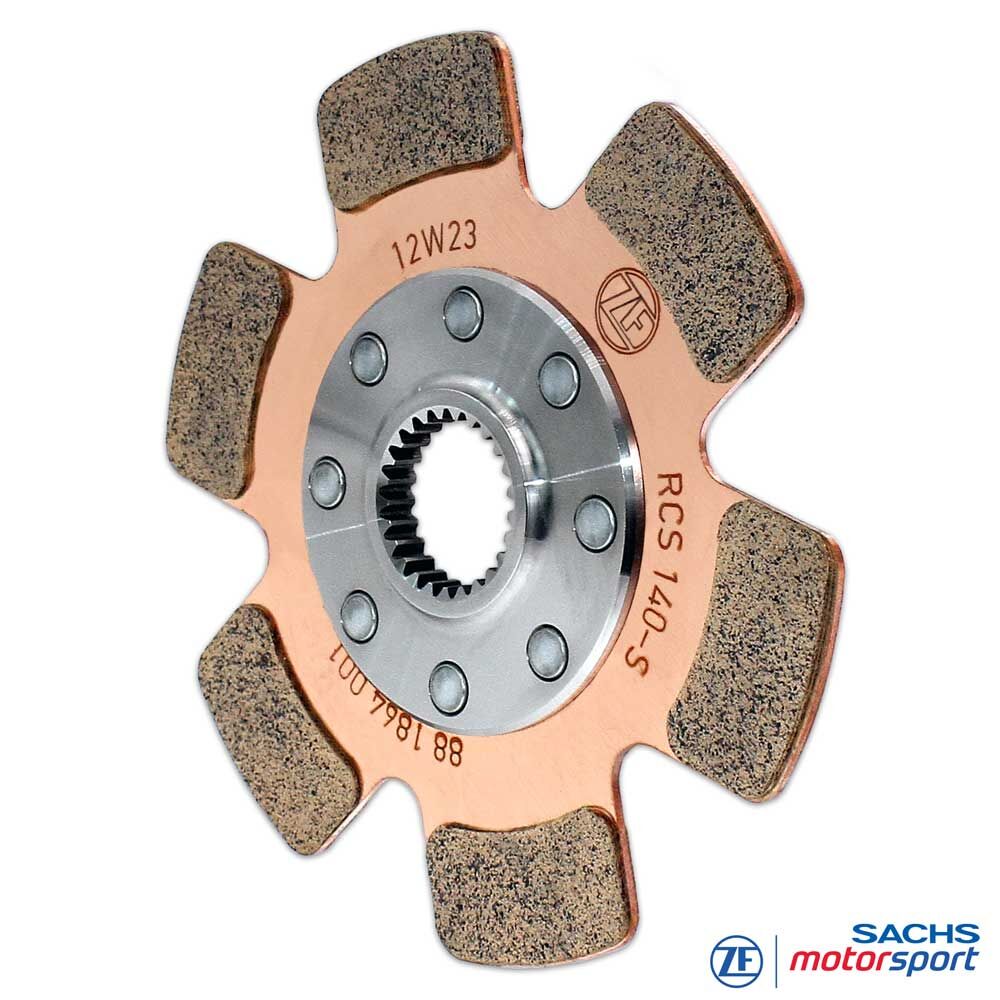

SACHS RCS 140 Clutch Disc
Sinter-Pad offers high wear range and is often used in applications where there are numerous starts.
Sinter 5.2
Application examples- Rally
- Rallycross/Autocross
- Touring cars
- Circuit racing
- Endurance races
Advantages
- High wear volume
- High temperature resistance
- Long operational life
Information needed for ordering
In addition to the hub length of the clutch disc, it is necessary to specify the required spline of the gear input shaft. The various splines are listed in a table under 'Hub spline'. The corresponding spline letter replaces the letter “x“ or "?" in the order number of the disc.
SACHS RCS140 Sinter-Pad 5.2 Clutch Standard Configuration| Engine torque Nm | Number of discs | Releaser diameter mm | Type of flywheel | Cover 00 3072 | Pressure Plate 00 3002 | Disc 88 1864 | Intermed. Plate 00 3019 | Disc 88 1864 | Intermed. Plate 00 3019 | Disc 88 1864 | Intermed. Plate 00 3019 | Disc 88 1864 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 960 | 2 | 49 | Gestuft | 000 113 | 001 470 | 002 160-x | 000 0224 | 002 160-x | ||||
| 960 | 2 | 38 | Gestuft | 000 103 | 001 470 | 002 160-x | 000 0224 | 002 160-x | ||||
| 1430 | 3 | 49 | Gestuft | 000 114 | 001 469 | 002 160-x | 000 0224 | 001 798-x | 000 0224 | 002 160-x | ||
| 1430 | 3 | 38 | Gestuft | 000 047 | 001 469 | 002 160-x | 000 0224 | 001 798-x | 000 0224 | 002 160-x |
