Disque d'embrayage SACHS RCS 184 - métal fritté 7.8

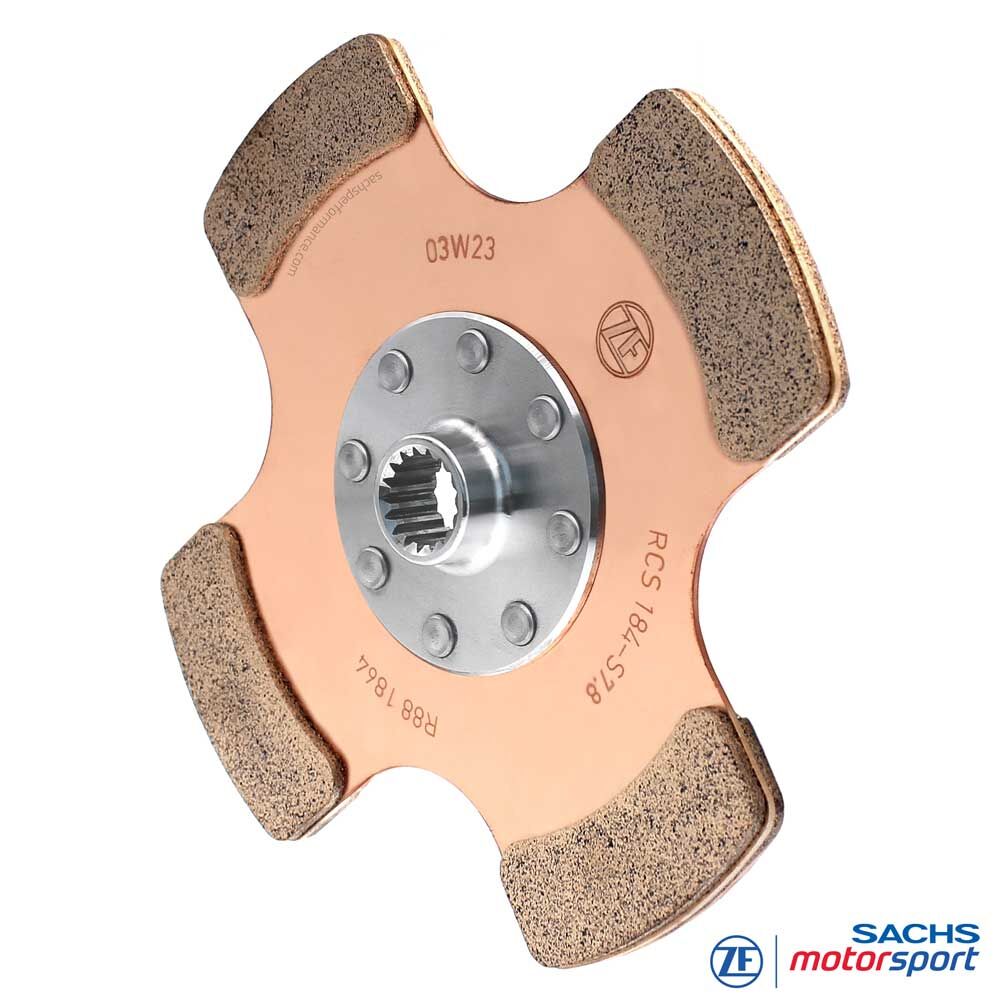

SACHS RCS 184 Clutch Disc
Sinter-Pad offers high wear range and is often used in applications where there are numerous starts.
Sinter-Pad 7.8
Application examples- Rally
- Rallycross/Autocross
- Touring cars
- Circuit racing
- Endurance races
Advantages
- High wear volume
- High temperature resistance
- Long operational life
Information needed for ordering
In addition to the hub length of the clutch disc, it is necessary to specify the required spline of the gear input shaft. The various splines are listed in a table under 'Hub spline'. The corresponding spline letter replaces the letter “x“ or "?" in the order number of the disc.
SACHS RCS184 Sinter-Pad 7.8 Clutch Standard Configuration| Engine torque Nm | Number of discs | Releaser diameter mm | Type of flywheel | Cover 00 3072 | Pressure Plate 00 3002 | Disc 88 1864 | Intermed. Plate 00 3019 | Disc 88 1864 | Intermed. Plate 00 3019 | Disc 88 1864 | Intermed. Plate 00 3019 | Disc 88 1864 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 385 | 1 | 49 | Gestuft | 000 130 | 001 898 | 002 238-x | ||||||
| 654 | 1 | 49 | Gestuft | 000 125 | 001 898 | 002 238-x | ||||||
| 654 | 1 | 44 | Gestuft | 000 139 | 001 898 | 002 238-x | ||||||
| 769 | 2 | 49 | Gestuft | 000 134 | 001 897 | 002 238-x | 000 336 | 002 238-x | ||||
| 1308 | 2 | 49 | Gestuft | 000 126 | 001 897 | 002 238-x | 000 336 | 002 238-x | ||||
| 1308 | 2 | 44 | Gestuft | 999 563 | 001 897 | 002 238-x | 000 336 | 002 238-x |
