SACHS RCS Pierscien zwalniajacy1-M

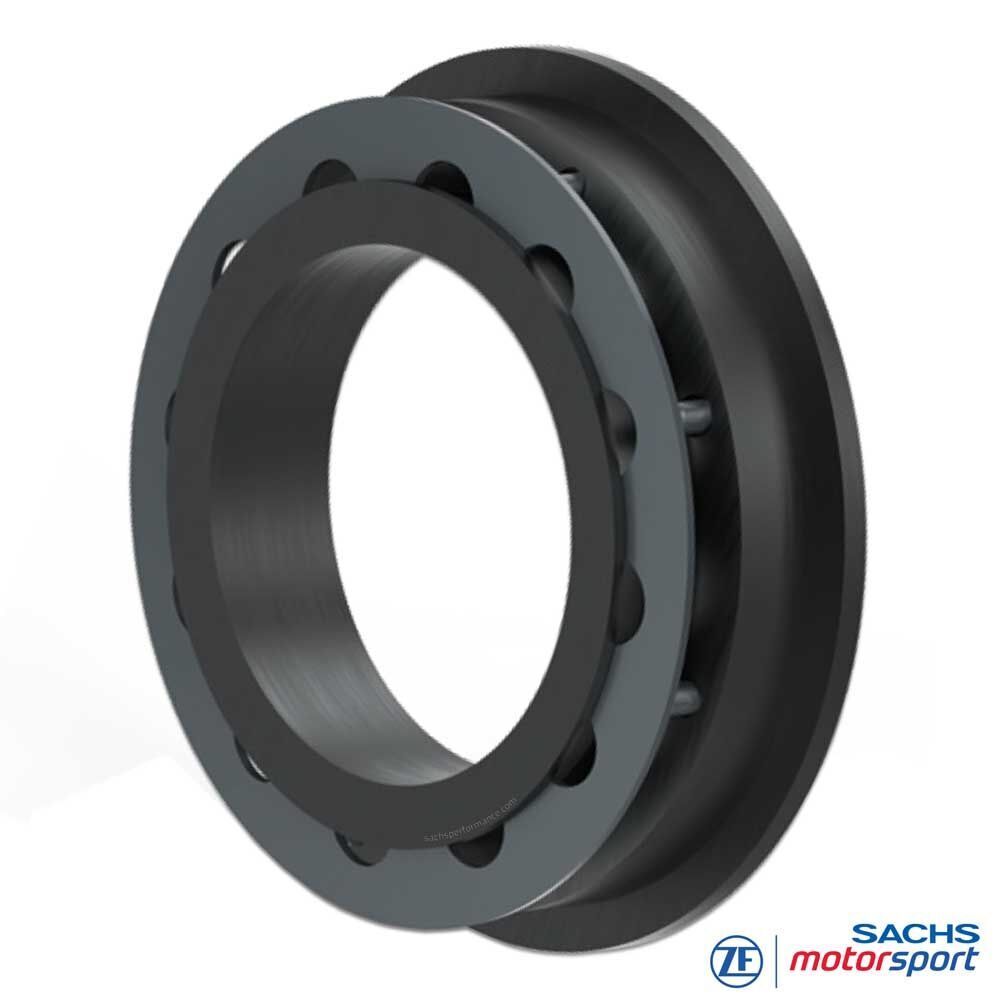

SACHS RCS Release Rings
Since racing clutches are not developed for specific vehicles, SACHS RCS clutches must be adapted to the installation space of the individual vehicle.
In order for the clutch to fit to the axial position of the releaser, so-called „release rings“ can be mounted on the clutch diaphragm spring. The release rings are available in different heights.
| For SACHS RCS clutch covers with one diaphragm spring Cover Numbers: | ||
|---|---|---|
| 00 3072 999 528 | 00 3072 999 543 | 00 3072 999 565 |
| 00 3072 999 529 | 00 3072 999 549 | 00 3072 999 584 |
| 00 3072 999 530 | 00 3072 999 550 | 00 3072 999 603 |
| 00 3072 999 531 | 00 3072 999 555 | 00 3072 000 035 |
| 00 3072 999 542 | 00 3072 999 556 | 00 3072 000 125 |
| 00 3072 000 126 | 00 3072 000 127 | 00 3072 000 130 |
| 00 3072 000 134 | 00 3072 000 139 | 00 3072 999 563 |
| 00 3072 000 167 | 00 3072 999 556 | |
Installation Instructions.
When a release ring is used, a release bearing with a flat start-up surface can be used. Standard release bearings usually have flat start-up surfaces. A release ring should always be used for standard release bearings with flat start-up surfaces.
